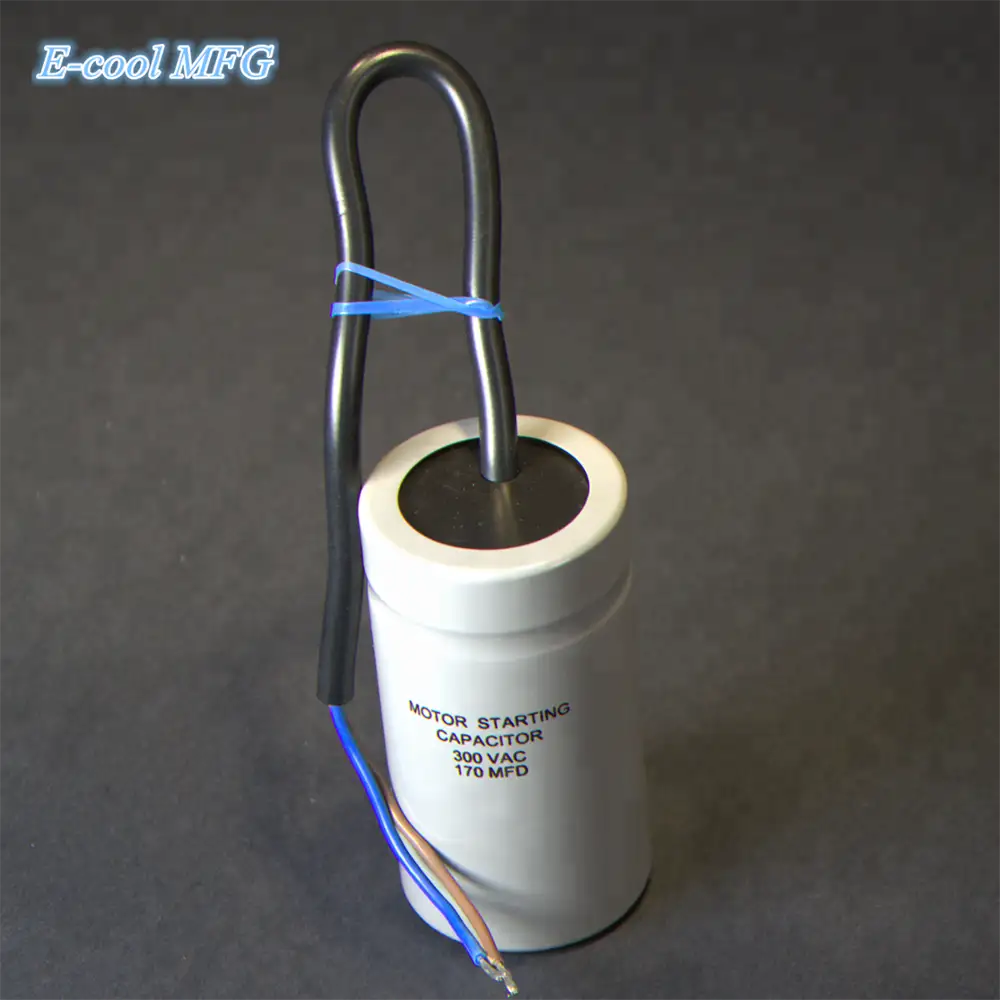

Water Pump CD60 Motor Starting Capacitor

Product Description

Quick Details

Place of Origin:

China (Mainland)

Brand Name:

E-Cool

Model Number:

CD60

Type:

Aluminum Electrolytic Capacitors

Application:

AC / Motor, Pump, Compressor, Heating Pump

Package Type:

Surface Mount

Capacitance:

21-1536MFD

Rated Voltage:

110/125/165/220/250/330/350V

Operating Temperature:

40/65(70)/21

Start Capacitor:

electrolytic Capacitor

SupplyAbility

SupplyAbility:

20,0000 Piece/Pieces per Day

Packaging & Delivery

Packaging Details

Exporting Standard Packing.
Can offer bulk packing,Individual box packing,Foam Packing,then use pallet.
TBD by clients.

Port

Ningbo/Shanghai/Tianjin/Dalian/Guangzhou

Lead Time :

10-20 days

Specifications

1.Used widely in single phase motors, air compressor, water pump,compressor and etc
2.High performance & Long life Capacitor.
3.work well even in high temperature

CD60 MOTOR START CAPAClTORS

Main Feature:

1.Bakelite resin case

2.Voltages from 110V AC to 330V AC

3.UL Recognized Capacitors

Applicable Scope :

To start and run single phase motors in alternating current usage,

And it suit for single phase A.C. motors with frequency of 50/60Hz.

General Specifications:

Operating Temperature:-40~+65°C

Voltage Range:110~330V AC

Capacitance Range:21~1536μf

Capacitance Tolerance:+/-20%

Operate Frequency:50/60Hz

Case Size:8 Standard Size from

1 437”x2.750” ~2 562”x4.375”/36mm x 70mm~65mm x111mm

Termination:1/4 ” Quick Disconnect Terminals(Std.)

Performance Specification:Meets Requirements of ElA-463-A and IEC-60252-2 and GB/T 3667.2-2016

Product Description

CD60 start capacitor is developed and researched according to standard of American

Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of

Bakelite resin plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular

used for the super AC application as good life, higher degree of reliability and stability.
