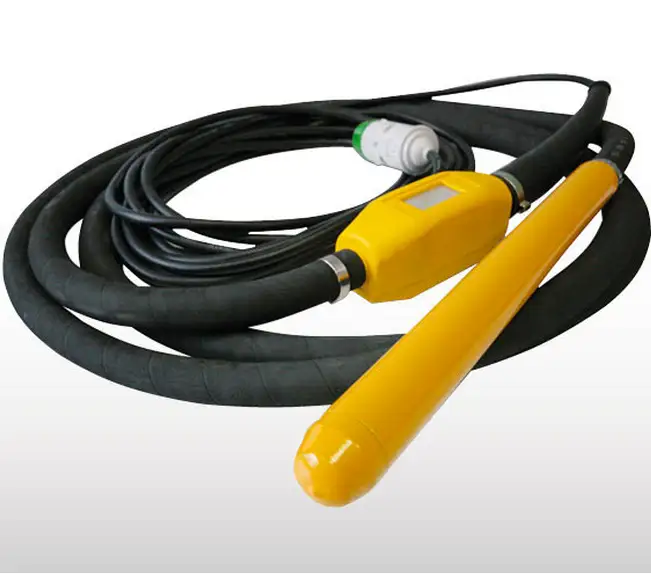

Internal type concrete Vibrator head with cylindrical roller bearings

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Construction works
    Condition:
    New
    Place of Origin:
    Zhejiang, China
    Brand Name:
    arkool
    Type:
    Internal
    Drive Mode:
    Electric Vibrator
    Frequency:
    50/60HZ
    Vibrating Amplitude:
    12000vpm
    Length of Flexible Shaft:
    30,38,45,58,65
    Voltage:
    220V/380V
    Weight:
    11KG
    Dimension(L*W*H):
    58*50*15
    Certification:
    ISO/SGS/CE/ROSH
    After-sales Service Provided:
    Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
    Warranty:
    6MONTHS
    Product name:
    Internal type concrete Vibrator
    Application:
    internal type concrete vibrator
    Key word:
    internal type concrete vibrator
    Usage:
    internal concrete virator
    MODEL:
    40/50 Internal type concrete Vibrator
    Rotational Speed (rpm):
    12000
    Excitation force (N):
    3500
    Diameter of Vivrator's Head (mm):
    40/52
    Length of Vibrator's head(mm):
    395/480
    Weight of Vibrator's (kg):
    3.5/4.5

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    58X50X15 cm
    Single gross weight:
    11.000 kg
    Package Type:
    one pics one box Internal type concrete Vibrator head with cylindrical roller bearings
    Picture Example:
    package-img
    package-img
    Lead Time :
    Quantity(Boxes) 1 - 500 >500
    Est. Time(days) 15 To be negotiated

    Internal type concrete Vibrator head with cylindrical roller bearings

    Model

    ark-40

    ark-52

    Diameter of vibrators head(mm)

    40

    52

    Length of vibrators head(mm)

    395

    460

    Weight of vibrators head(kg)

    3.5

    4.5

    Packing size(cm)

    58x50x15

    58x50x15

    Rotational speed(rpm)

    12000

    12000

    Excitation force(N)

    3500

    5000 N

    Input Voltage

    220 /110V

    220 /110V

    Max Power(W)

    400

    800

    Cable length(m)

    10

    10

    Effective working diameter(cm)

    60

    80

    Diameter of rubber pipe(mm)

    42

    42

    Length of rubber pipe(m)

    1-6

    1-6

    Productivity and long service life: these are the outstanding characteristics . Even under tough application conditions, these high-frequency internal vibrators will convince with an all-round consistently high compaction performance.



    High-performance electric motor with stable speeds
    The electric motor has been developed by us according to the highest quality standards: Made in China
    Integrated thermal overload protection breaker
    The induction-hardened vibrator head ensures high wear resistance

    Internal type concrete Vibrator head with cylindrical roller bearings 9

    Vibrator head with cylindrical roller bearings

    Extremely durable – completely tempered vibrator head
    Less wear, especially with abrasive concrete aggregates
    Plug effectively dispels shocks on the housing
    Repairs possible on the vibrator head
    Easily replace wear parts yourself – Rubber cap easy to replace with tools







    Vibrator head sizes for all applications

    Outfitted for any application – 5 vibrator head sizes available
    Diameter 30, 38, 45, 58, 65 mm

    Internal type concrete Vibrator head with cylindrical roller bearings 11



    Protection hose

    Made of sturdy, very abrasion resistant material
    Various protection hose lengths available up to max. 18 meters



    Power cable

    You can't get any more freedom of movement: Power cable with 15 meters in length







    Our Market



    High-frequency internal vibrators for first-class compaction results in concrete application is wordwide,from country to couintry , Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country.
