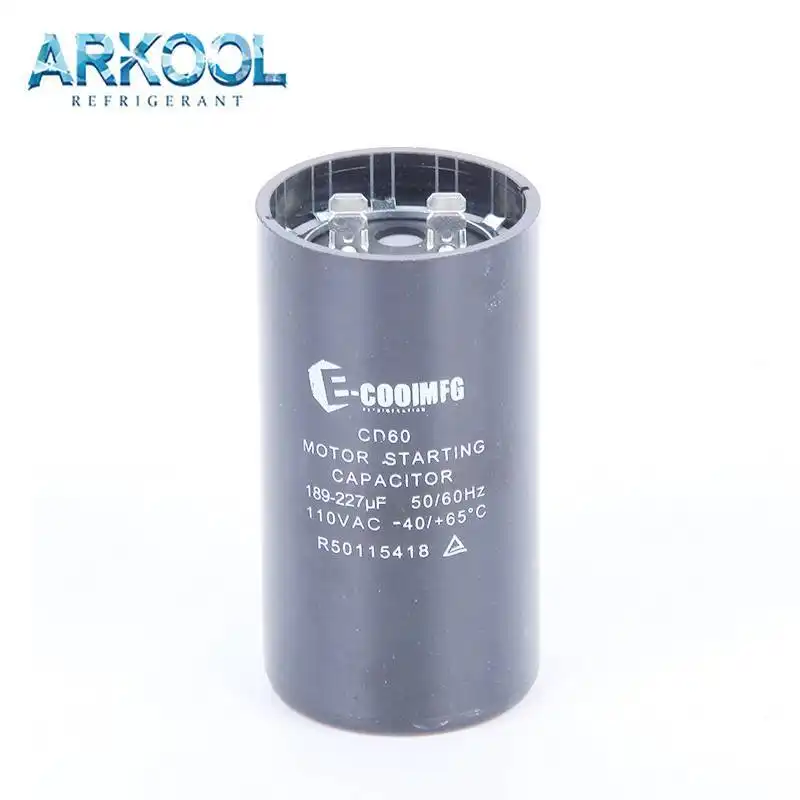

Electrolytic Cd60b Motor Start Capacitors

    oops...!

    no product data.

    Go to homepage

    QUICK DETAILS

    Place Of Origin

    China

    Brand Name

    ARKOOL E COOL  OEM

    Model Number

    CD60B

    Application

    AC / motor /Compressor /water pump

    Rated Voltage

    110-330VAC

    Capacitance

    21-1536uf

    Dissipation FactorTgδ≤0.15(100HZ 20℃ )

    Capacitance Tolerance

    ±10% ±15% 0~20%

    Operating Temperature

    40/65/21

    Product Name

    CD60 start capacitor

    Certificate

    VDE/UL/CQC/TUV

    Material

    Bakelite resin case

    Size

    Custom size

    Terminal

    Cable  / U type

    Shape

    Round

    Supply Ability

    Supply Ability

    10000 Unit/Units per day

    Packaging & Delivery

    Packaging Details

    Exporter's standard packing

    Size

    According to customer's requests

    Port

    Ningbo shanghai

    Lead Time

    Within 15 days after getting the deposit

    Termination

    1/4 ” Quick disconnect terminals(Std.)

    Performance Specification

    Meets requirements of ElA-463-A

    PRODUCT BRIEF INTRODUCTION

    Description

    CD60 type start capacitor: Apply to 50/60Hz single phase AC motors for starting. It is widely used to heat pump. air conditioning, freezers,refrigerators etc. When motor starting. it provide for higher torque. See chart below.

    Motor Start Capacitor for Refrigerator

    Capacitor Introduction:
    CD60 type aluminum electrolytic capacitor is made according to american ANSI/EIA - 463-A standard, a new device developed,bakelite case, high class insulating, high strength, uneasy broken and good sealed.This device is of the good performance, easily for use, reliable and long in service life as well as the high and stable quality.
    CD60 type aluminum electrolytic capacitor is suitable for use in single phase AC motors with frequency of 50Hz - 60Hz, voltage 110VAC - 330VAC to get high rotary torque at low starting current and also be widely for use in the high-tech territory.

    Product Description

    CD60 start capacitor is developed and researched according to standard of American

    Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of

    bakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular

    used for the super AC application as good life, higher degree of reliability and stability.

    Electrolytic Cd60b Motor Start Capacitors 7

    Specifications

    1. Used widely in motors,air compressor,water pump etc.
    2. High performance & Long life Capacitor.
    3. work well even in high tem.

    CD60-B MOTOR START CAPAClTORS

    Applicable Scope

    To start and run single phase m0tors in alternating current usage, and it suit for single phase A.C. motors with frequency of 50/60Hz.

    Case size of Standard Products (mm)

    Rated Voltage

    Capacitance Range

    110-125V

    165V

    220-250V

    330V

    D X H

    21-25

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    25-30

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    30-36

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    43-53

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    46.02 x85.72

    53-64

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    46.02 x85.72

    67-77

    36.5 x69.85

    36.5 x69.85

    36.5 x69.85

    46.02 x85.72

    88-108

    36.5 x69.85

    36.5 x69.85

    46.02 x85.72

    46.02 x85.72

    124-149

    36.5 x69.85

    36.5 x69.85

    46.02 x85.72

    52.37 x111.12

    161-193

    36.5 x69.85

    36.5 x85.72

    52.37 x85.72

    52.37 x111.12

    200-240

    36.5 x69.85

    46.02 x85.72

    52.37 x85.72

    52.37 x111.12

    Note: All other types of products in form can be fulfilled at the request of customers.

    Case size

    1

    2

    3

    4

    5

    6

    7

    8

    Dimension(D x H)(mm)

    36.5 x69.85

    36.5 x85.72

    36.5 x111.12

    46.02 x85.72

    46.02 x111.12

    52.37 x85.72

    52.37 x111.12

    65.50 x111.12

    Dimension(D x H)(mm)

    1.437 x2.750

    1.437 x3.365

    1.437 x4.365

    1.812 x3.365

    1.812 x4.365

    2.062 x3.365

    2.062 x4.365

    2.562 x4.365
