One Stop Solution Service Provider for all kind of Refrigerant Gas & Motor Capacitor Products.

CD60 Capacitor
Home  > PRODUCTS  > Arkool Refrigerant Gas & Motor Capacitor  > CD60 Capacitor  >

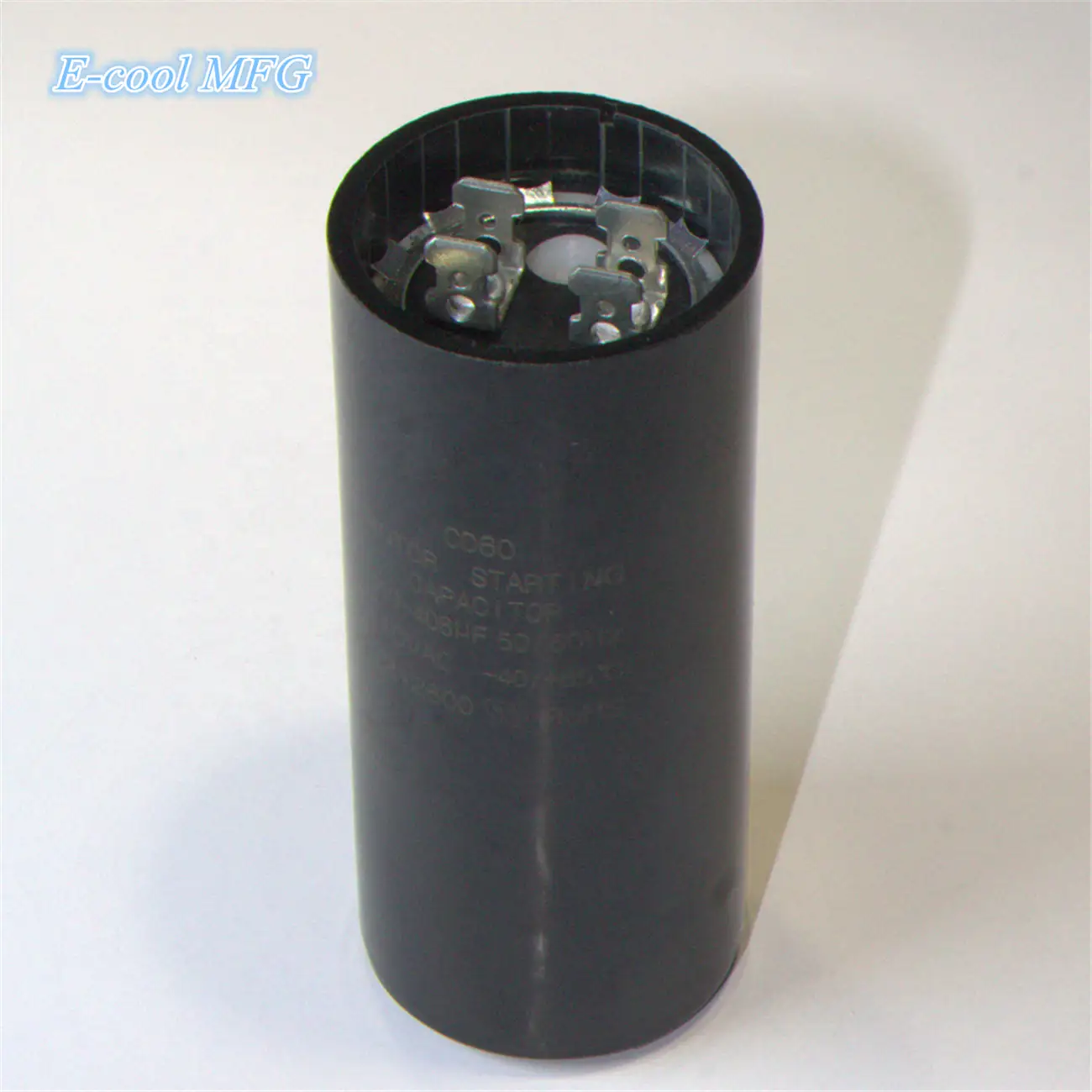

CD60 Black Cover Aluminum Electrolytic Capacitor

这里可以自定义设置
CD60 Black Cover Aluminum Electrolytic Capacitor
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Model Number:
CD60
Type:
Place of Origin:
Liaoning, China
Brand Name:
JKD
Package Type:
Through Hole
Rated Voltage:
110~330VAC
Operating Temperature:
40/70/21 40/65/21
Application:
AC / Motor
Color:
black
Round type:
Luxury
Terminal:
Wires Terminlas
Brand:
JKD
Material of Case:
Bakelite Material
Size / Dimension:
36.5*69.85~65.5*111.12
Tolerance:
±10%
Packaging:
50~100pcs/carton
Capacitance:
21~1536uF

Packaging & Delivery

Selling Units:
Single item
Single package size:
0.6X0.8X0.9 cm
Single gross weight:
1500.000 kg
Package Type:
Cartons,Pallets,Individual box
Lead Time :
Quantity(Pieces) 1 - 3000 3001 - 9000 9001 - 18000 >18000
Est. Time(days) 8 10 15 To be negotiated

Product Description

CD60 Black Cover Aluminum Electrolytic Capacitor

Quick Details

Place of Origin:

China (Mainland)

Brand Name:

JKD and E-Cool

Model Number:

CD60

Type:

Aluminum Electrolytic Capacitors

Application:

AC single phase Motors,water Pump,refrigeration Compressor, Heating Pump

Package Type:

Surface Mount

Capacitance:

21-1536MFD

Rated Voltage:

110/125/165/220/250/330/350V

Operating Temperature:

40/65(70)/21

Start Capacitor:

electrolytic Capacitor

SupplyAbility

SupplyAbility:

20,0000 Piece/Pieces per Day

Packaging & Delivery

Packaging Details

Exporting Standard Packing.
Can offer bulk packing,Individual box packing,Foam Packing,then use pallet.

TBD by clients.

Port

Ningbo/Shanghai/Tianjin/Dalian/Guangzhou

Lead Time :

10-20 days

Specifications

1.Used widely in single phase motors, air compressor, water pump,refrigeration compressor and etc
2.High performance & Long life Capacitor.

3.work well even in high temperature

CD60 series MOTOR START CAPAClTORS

Main Feature:

1.Bakelite resin case

2.Voltages from 110VAC to 330VAC

3.UL and VDE Recognized Capacitors

Applicable Scope :

To start and run single phase motors in alternating current usage,

And it suit for single phase A.C. motors with frequency of 50/60Hz.

General Specifications:

Operating Temperature:-40~+65°C

Voltage Range:110~330VAC

Capacitance Range:21~1536μf

Capacitance Tolerance:+/-20%

Operate Frequency:50/60Hz

Case Size:8 Standard Size from

1.437”x2.750” ~2.562”x4.375”/36mm x 70mm~65mm x111mm

Termination:1/4 ” Quick Disconnect Terminals(Std.)

Performance Specification:Meets Requirements of ElA-463-A and IEC-60252-2 and GB/T 3667.2-2016

Product Description

CD60 start capacitor is developed and researched according to standard of American

Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of

Bakelite resin plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular

used for the super AC application as good life, higher degree of reliability and stability.




Hangzhou E cool refrigeration Co.,Ltd has a series of professional and complete refrigerant gas product lines. It is leak-tight manufactured with advanced joining techniques. To ensure that the refrigerant gas's quality, Arkool has put large investment to meet customer requirements. It is leak-tight manufactured with advanced joining techniques.
