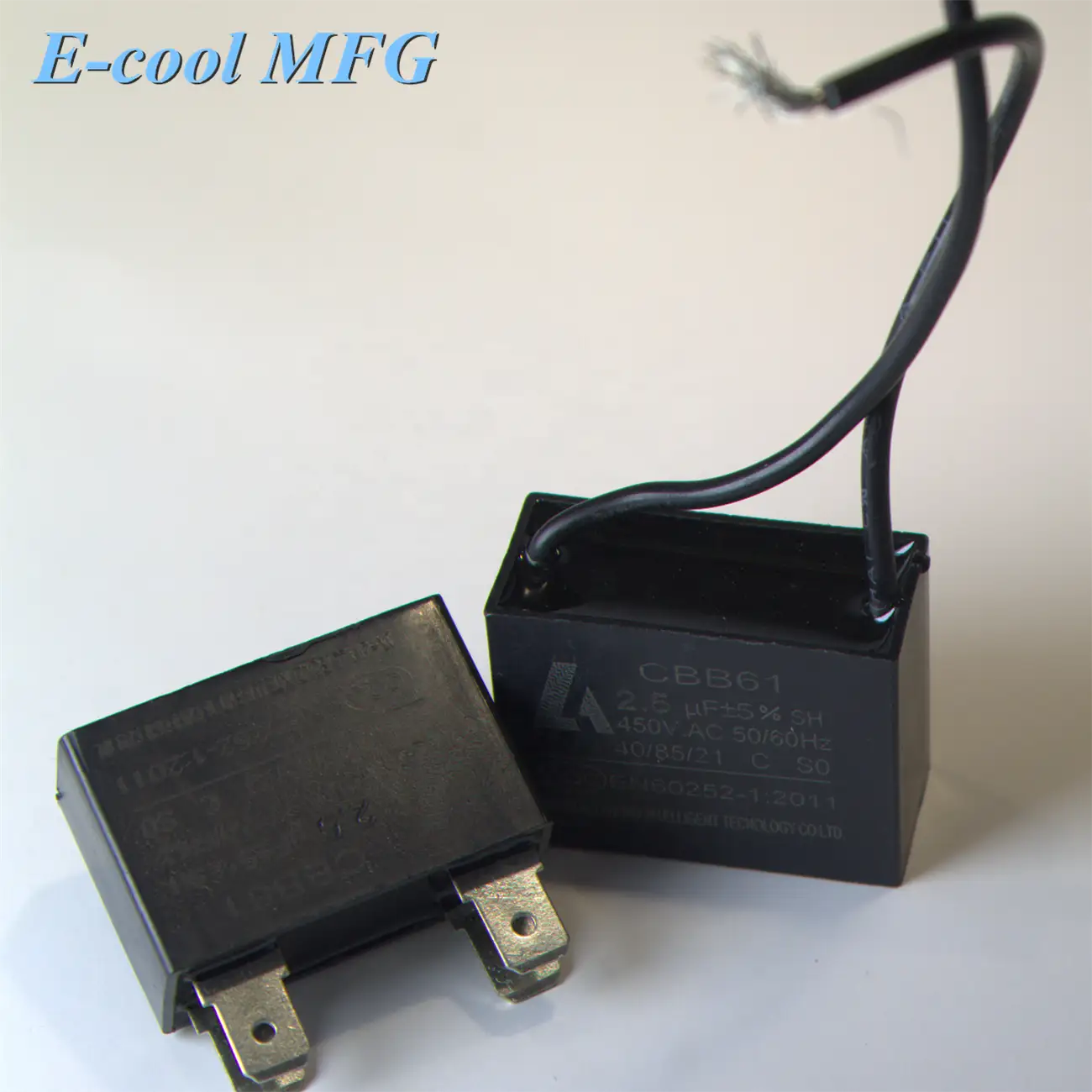

CBB61 450VAC 4uF 50/60Hz 4 Pins Air Conditioner Motor Run Capacitor OZ SELLER

这里可以自定义设置
CBB61 450VAC 4uF 50/60Hz 4 Pins Air Conditioner Motor Run Capacitor OZ SELLER
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Model Number:
CBB61
Type:
Polypropylene Film Capacitor
Place of Origin:
China
Brand Name:
E-cool
Package Type:
Through Hole
Rated Voltage:
220-500VAC
Operating Temperature:
40/70/21
Application:
AC / Motor
Capacitance tolerance:
5%
Package:
Individual Box and Cartons and Pallets
Product name:
CBB61 capacitors
Warranty:
2~5years
Application of Capacitor:
pump,motors and washing machines
Shape:
Square
Shipment method:
By Truck,By Sea and By Air
Frequency:
50/60Hz
Capacitance:
1-40μF

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X34X37 cm
Single gross weight:
600.000 kg
Package Type:
Exporting Standard Packing. Can offer bulk packing,Individual box packing,then use pallet. TBA by clients.
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 5000 5001 - 20000 20001 - 50000 >50000
Est. Time(days) 10 15 20 To be negotiated
Product Description



Feature

1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power

2:Self-healing property

3:High stability and reliability

4:widly used in fan for speed regulation

Technical Specification

  reference standards   GB/T 366.7.1(IEC60252-1)
  Climatic category   40/70/21 40/85/21
  class of operation   Class B(10000h) class C(3000h)
  class of safety protection   P0
  voltage range   200VAC~660VAC
  capacitance range   1-16uF
  capacitance tolerance   +-5%
  Dissipation factor   20*10-4  (100HZ,20OC   )
  Test voltage terminal to terminal UTT   2Un for 2 seconds
  Test voltage terminal to case UTC   (2Un+1000)VAC or 2000VAC -50Hz for 60seconds
  Insulation Resistance   >=3000M uF(100Hz 20 oC,1min)



Small size, small loss and excellent self-healing property.

Very small dissipation factor, small inherent temperature rise.

High insulation resistance.
Good capacitance stability.

Available for refrigertors, fans, electric pumps, washing machines, air exhaustors, air-conditioners,fluorescent lamps,daylight lamps,halogen lamps, high pressure sodium lamps,etc.



Our Services

More than 20 years' professional experience about motor run capacitor 450v 2.5uf kondensator cbb60 sh en60252 1



Many certificates,ISO,CE,,UL,CQC,TUV,RoHS,cUL,SGS,etc



Sample is free and welcome you to check its quality firstly



Any inquiries will be timely answered within 24 hours





Exporting Standard Packing.

Can offer bulk packing,Individual box packing,then use pallet. TBA by clients.

15 to 25 days delivery time, depends on your orders' quantity.











Packaging & Shipping

 Exporting Standard Packing.

Can offer bulk packing,Individual box packing,then use pallet. TBA by clients.

15 to 25 days delivery time, depends on your orders' quantity.

Our Services



More than 20 years' professional experience about motor run capacitor



Many certificates,ISO,CE,VDE,UL,CQC,TUV,RoHS,cUL,SGS,etc



Sample is free and welcome you to check its quality firstly



Any inquiries will be timely answered within 24 hours

Company Information

Hangzhou E-Cool Co., Ltd. is since 2007, and specialized in the production of all types of AC motor capacitor, cbb60 capacitor, cbb61 capacitor, cbb65 capacitor, cbb80 capacitor, 250vac capacitor, 450vac capacitor, 1uf~180uf capacitor, 110vac~630vac capacitor, en60252 capacitor, P2 capacitor, S3 capacitor, explosion proof capacitor, sh capacitor, motor run capacitor, fan capacitor, ceiling fan capacitor, air conditioner capacitor, water pump capacitor, air compressor capacitor, washing machine capacitor, microwave capacitor, power capacitor, lighting capacitor, lamp capacitor, electrothermal capacitor, ignitor for lamp,EMI filter for washing machine, wire & cable for home appliance and industrial microwave oven equipment.

In order to achieve better quality capacitor products, we have passed ISO9001 in 2007, got UL, cUL, TUV, CE, CQC, RoHS, REACH certificates etc.

With our strict quality management system, we are able to ensure the high quality of our products. Therefore, our products are very popular in Southeast Asia, the Middle East, American and Europe. And we have built up a very good reputation among our customers. Furthermore, we can design products according to your special demands.

With our business principle of "honor the contract and keep our promise", we will always keep our customers in mind. We would like to trial produce all special types of capacitors and industrial microwaves for customers all over the world. We welcome to interested companies to visit our company or contact us for more information.

Management has gradually improved in Hangzhou E cool refrigeration Co.,Ltd. It can be used in gas dusters and in air driers for the purpose of removing moisture from compressed air. The unchanging high quality of refrigerant gas wins big trust from customers. It can be used in gas dusters and in air driers for the purpose of removing moisture from compressed air.
