air compressor capacitor CBB65,CBB60 & CD60
- Model Number:
-
CBB65
- Type:
-
Polypropylene Film Capacitor
- Place of Origin:
-
China
- Brand Name:
-
E-cool
- Package Type:
-
Through Hole
- Rated Voltage:
-
250-500VAC
- Operating Temperature:
-
40/85/21
- Application:
-
Air Conditioner
- Product name:
-
air condition capacitor
- Certificate:
-
UL,CUL,CQC,CE,RoHS
- Capacitance tolerance:
-
5%
- Package:
-
Individual Box and Cartons and Pallets
- Size / Dimension:
-
45*80~60*130
- Warranty:
-
2~5years
- Application of Capacitor:
-
air condition,compressor,heating pump,motors
- Shape:
-
Round and Oval
- Shipment method:
-
By Truck,By Sea and By Air
- Frequency:
-
50/60Hz
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 0.5X0.6X0.7 cm
- Single gross weight:
- 1500.000 kg
- Package Type:
- Individual box,Cartons and Pallets
- Picture Example:
-
- Lead Time :
Quantity(Pieces) 1 - 6000 6001 - 30000 30001 - 50000 >50000 Est. Time(days) 10 15 20 To be negotiated

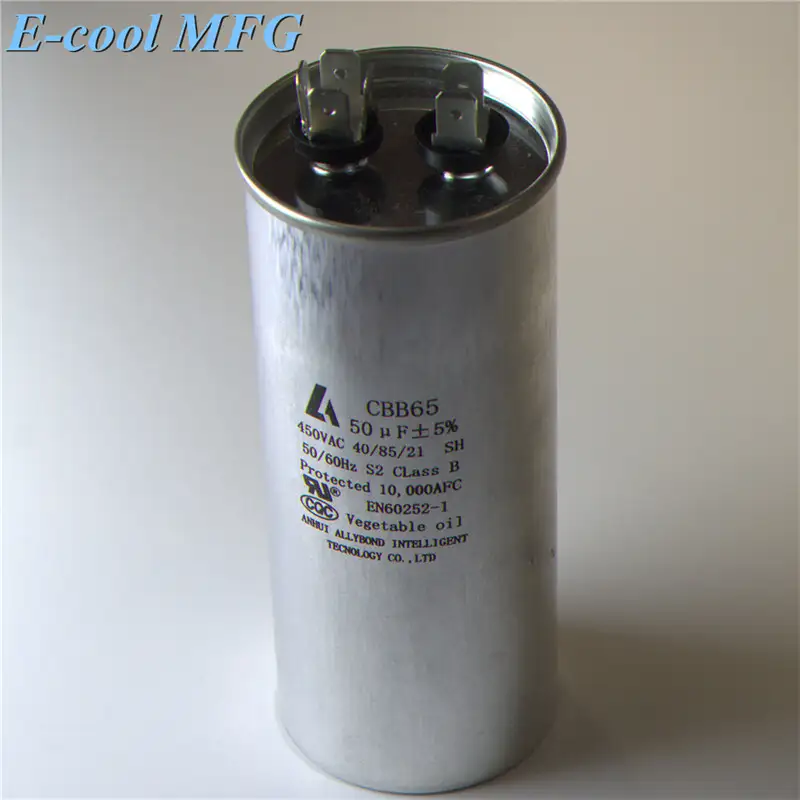

CBB65 RUN CAPACITORS
Main Feature:
Low dissipation factor small inherent temperature rise, excellent
self-healing stability safety and high voltage withstand etc.
Applications:
Run starting in household electric appliances air conditioner,
refrigerator which demand 50/60Hz AC power supply Have
safe protection construction.
Specifications
Climatic category | Rate voltage | Testing voltage T-T | Testing voltage T-C | Capacitance tolerance | Dissipation factor |
-25/+70/21 -40/+85/21 | 370/440VAC | 1.75Un/5S (2Un/5S) | 2000V.AC/5s | ±5% (±10%) | ≤0.002 (100Hz) |
Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
Dimension(mm):D: Φ40-Φ60,H:60-150
Reference standard:UL810,IEC252,EN60252,GB3667
Certification:UL Construction,UL 10,000AFC,TUV
Safety grade:P1,P2.
Packaging & Delivery
Packaging Details
Exporting Standard Packing.
Can offer bulk packing,Individual box packing,then use pallet.
TBD by clients.
Port
Ningbo or Shanghai
Lead Time :
10 to 20 days
SupplyAbility
Supply Ability:
1000000 Piece/Pieces per Day
Place of Origin:
Anhui, China (Mainland)
Brand Name:
E-cool
Model Number:
CBB65
Type:
Polypropylene Film Capacitor
Application:
AC / Motor
Package Type:
Surface Mount
Capacitance:
1uF to 150uF
Rated Voltage:
110V,250V,370V,400V,440V,450V,480V
Operating Temperature:
-40/85/21
Film Capacitor:
Polypropylene Film Capacitor
